RGX

Transit Rail Grinding

Flexible option with proven production.

Loram’s RGX Series is a compact rail grinding solution designed for both production and specialty rail grinding to meet the demands of commuter, transit railways and some mainline applications. The compact design of the RGX allows it to navigate a wide variety of network requirements – steep grades, narrow curves, reduced kinematic, diagrams and light axle loads – while addressing a variety of grinding conditions. The RGX leverages state of the art technology and highly productive, 30 hp grind motors for efficient metal removal, reduced grind time, and optimized maintenance cost.

RGX includes Loram’s patented Rail Pro® grind management software systems. RGX is a configurable platform with (10) different consist configurations ranging from 20 to 40 stones. Each grind car contains its own engine, traction, water tank, hydraulics, and other features giving redundancy in operation while also meeting the latest emission requirements around the world. Other key features included in the RGX platform are railway bogies for improved ride quality, climate-controlled cabins and safe travel positions for up to 4 operators, highspeed travel for efficiently transiting to work-site and use of bio-degradable hydraulic fluids.

RGX Grinders Equipment Features:

  • Redundant Engine and Traction Systems per Consist
  • Engine Fire Detection and/or Suppression System
  • Rail Pro®
  • Optical Transverse Rail Profile Measurement System
  • Longitudinal Rail Profile Measurement System
  • Rail Surface Imagery System
  • Integrated dust collection and noise suppression system
  • Flexibility to grind a variety of rail conditions
  • Configurable from 20 to 40 stone consists
  • Optional support car configured to suit
  • Application flexibility by using either 10- or 16-in stones with standard, medium or fine grit

RGX Rail Grinder
Length¹ 50 – 200 ft (15.2 – 61.0 m)
Width 8 ft 9 in (2.7 m)
Height 10 ft 10 in (3.3 m)
Maximum Axle Weight¹ 14.8 ton (13.5 tonne)
Grind Motors 30 hp (22.4 kW)
Grind Speed Up to 15 mph (24 km/h)
Travel Speed Up to 50 mph (62 km/h)
Gradeability 8%
Minimum Grind Radius¹ Down to 115 ft (35 m) [actual curving capability will
depend on railway infrastructure]
Minimum Travel Radius Down to 115 ft (35 m) [actual curving capability will
depend on railway infrastructure]
Grind Angles 75° gauge to 25° field
Generator Power¹ Up to 1,800 kW
Fuel Capacity¹ Up to 1,600 gal (6,000 L)
Water Capacity¹ Up to 3,200 gal (12,112 L)
Track Gauge 39.3 in. (1,000 mm) to 66 in. (1,676 mm)

¹Configuration dependent
Specifications subject to change

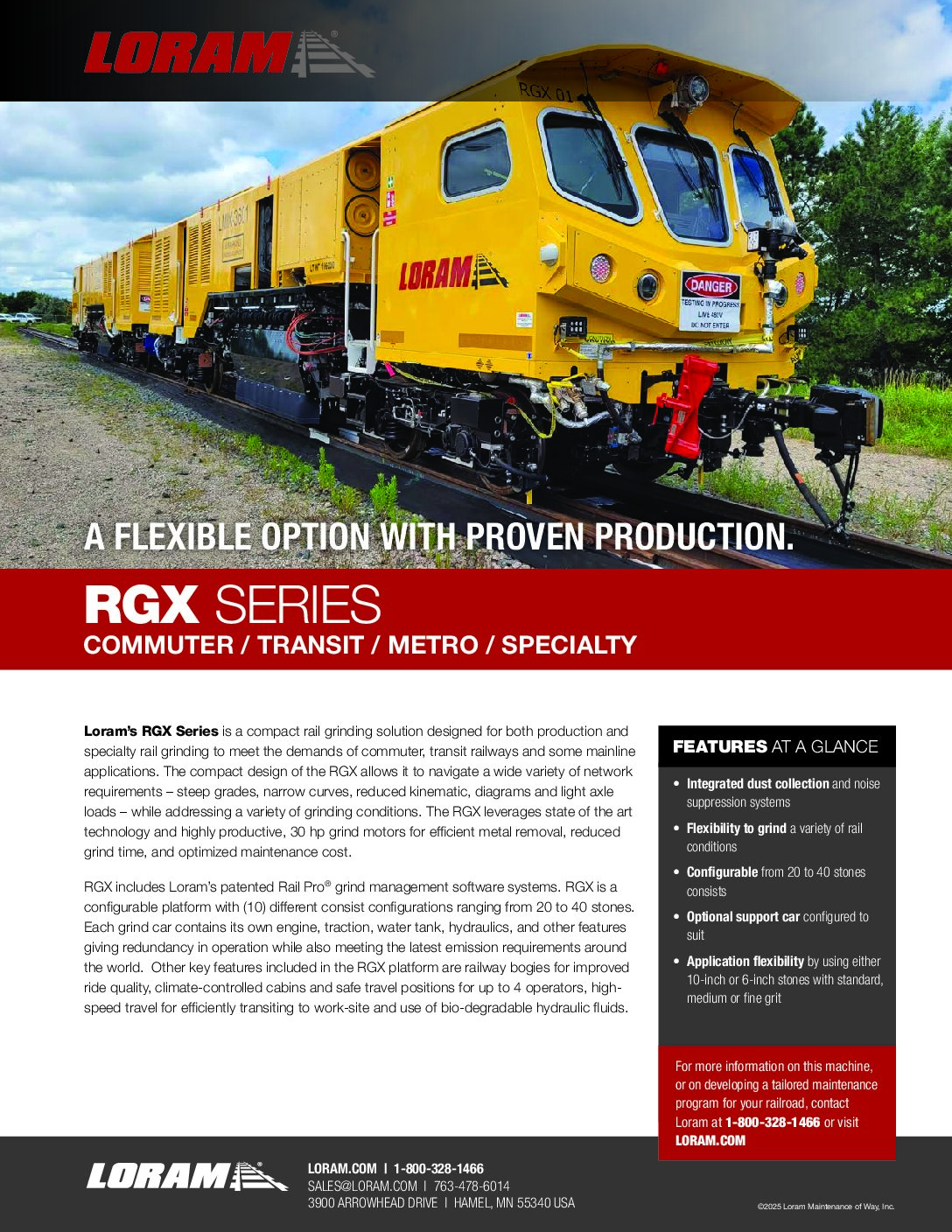

Spec Sheet
