RGC

Production Rail Grinding

Grinding Versatility from High-Speed Commuter to Freight Lines

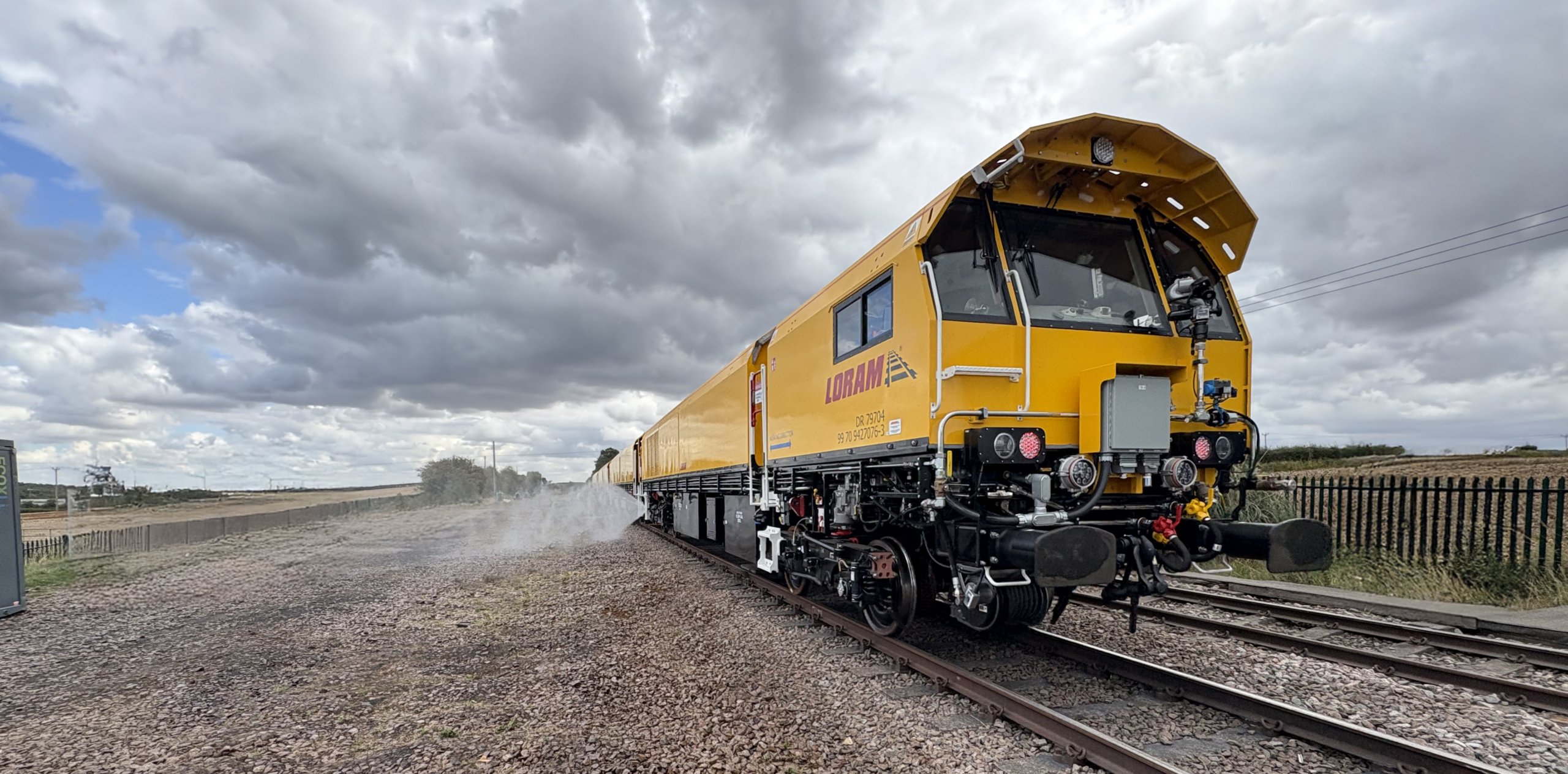

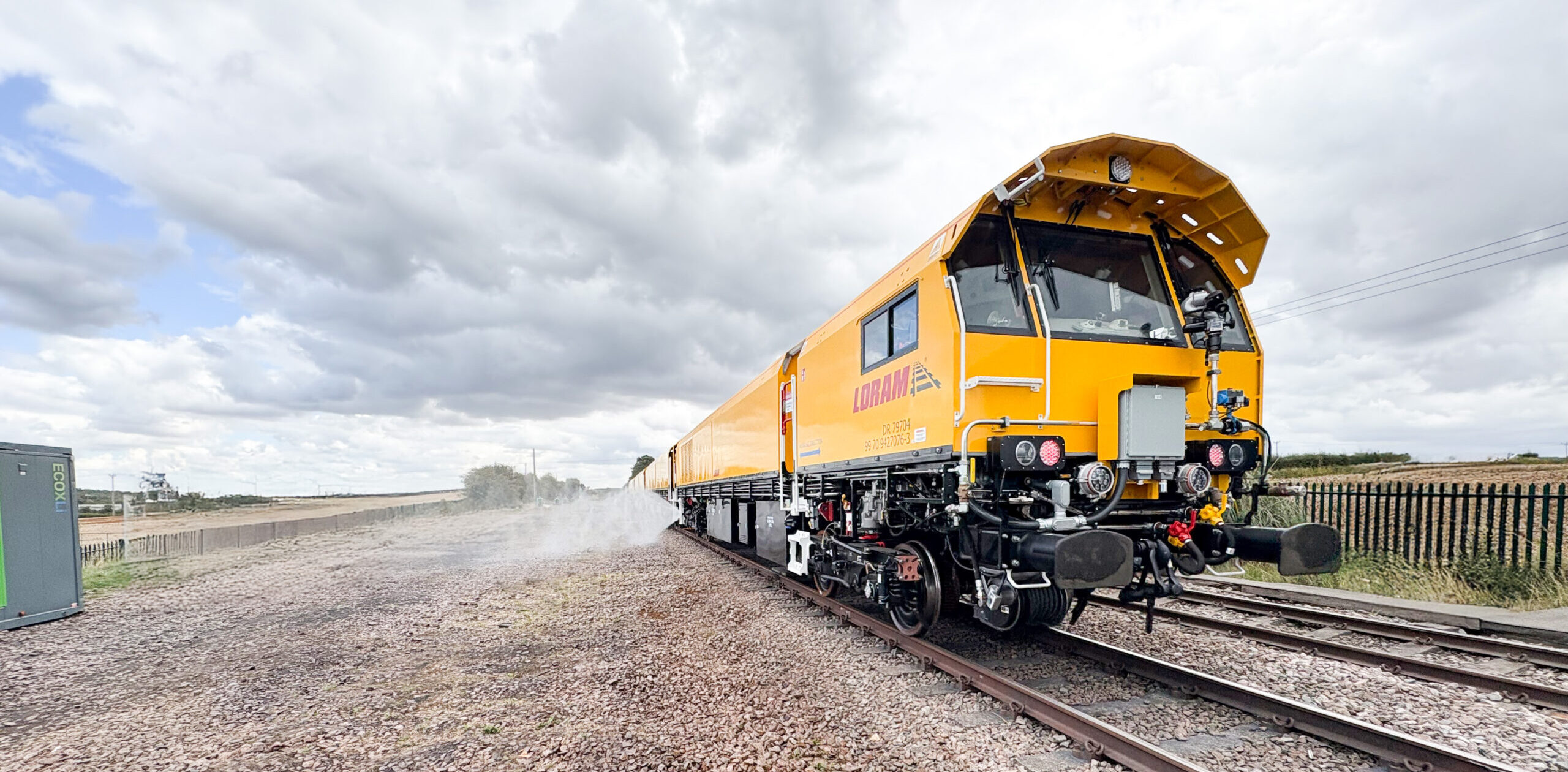

Loram’s RGC Series Rail Grinder brings together mainline grinding performance and a compact design tailored for passenger and commuter rail systems. Engineered for high productivity, it delivers the proven performance Loram is known for—within a smaller footprint ideal for high-speed and urban networks.

Built with advanced technology, the RGC meets rigorous international standards for construction, fire safety, weight, and clearance. It conforms to the W6A (UK) clearance diagram and accommodates axle load requirements for both commuter and freight operations.

Optional features—including Loram’s RailPro®, optical transverse and longitudinal rail measurement, and HD geo-tagged rail surface imaging—offer precise, real-time visibility into rail conditions.

Equipped with independent tilt and shift modules, the RGC achieves world-class grinding performance across both mainline track and specialized assets, including configurations up to 40 stones.

Features of the Loram RGC include:

  • Industry-leading electric 30 hp (22 kW) motors for the most efficient metal removal, optimizes grind time and reduced cost
  • Reduced platform footprint to designed to fit most international clearance diagrams
  • Module capability to grind in third rail applications, with either energized or
    de-energized third rail
  • State of the art traction system with speed and grade travel capabilities
  • Machine software development to EN50128
  • Redundant engine and Traction systems per consist
  • A robust production rail grinding solution with the ability to perform specialty rail grinding
  • 22 ton (20 tonne) axle weight
  • Independent tilt and shift grind modules for complete grind pass coverage
  • EN13231 capable machine, offering grind quality standards to perform maintenance on high speed rail
  • Grind dust collection
  • Advanced fire suppression technology (including tie and ditch sprays, remote controlled water cannons and deployable fire hose)
  • Flame-resistant hydraulic fluid
RGC Series Rail Grinder
Length¹ 275.9-483.5 ft (84.1-147.4 m)
Width 9 ft-1 in (2.77 m)
Height Maximum 12 ft-10 in (3.91 m)
Maximum Axle Weight¹ 22 ton (20 tonne)
Grind Motors 30 Hp (22.4 kW)
Grind Speed Up to 20 mph (32 km/h)
Travel Speed Up to 70 mph (112 km/h)
Gradeability Up to 4%
Minimum Grind Radius¹ Down to 328 ft (100 m) [actual curving capability will depend on railway infrastructure]
Minimum Travel Radius Down to 262 ft (80 m) [actual curving capability will depend on railway infrastructure]
Grind Angles 75° gauge to 25° field
Generator Power¹ 3.25 mW
Fuel Capacity¹ 3,400-6,100 gal (12870-23,091 litres)
Water Capacity¹ 4,000-29,000 gal (15,141-109,776 litres)
Track Gauge 1,067-1,435 mm 42-56.5 in (custom track gauge available)

¹ Configuration dependent specifications subject to change

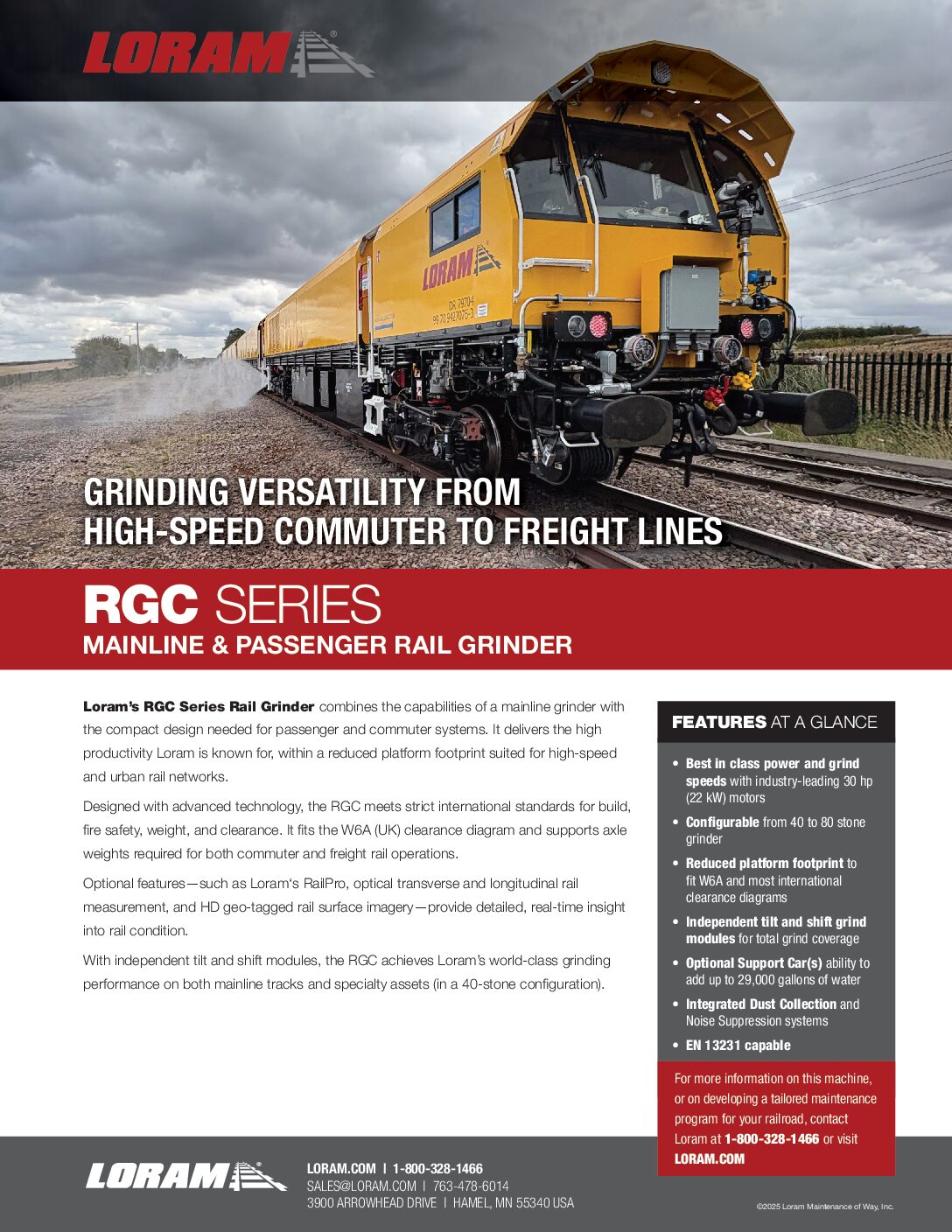

Spec Sheet
